关于这个东西的话,记住一点就可以了
就是pxe可以给很多服务器自动的安装操作系统,这样省时省力

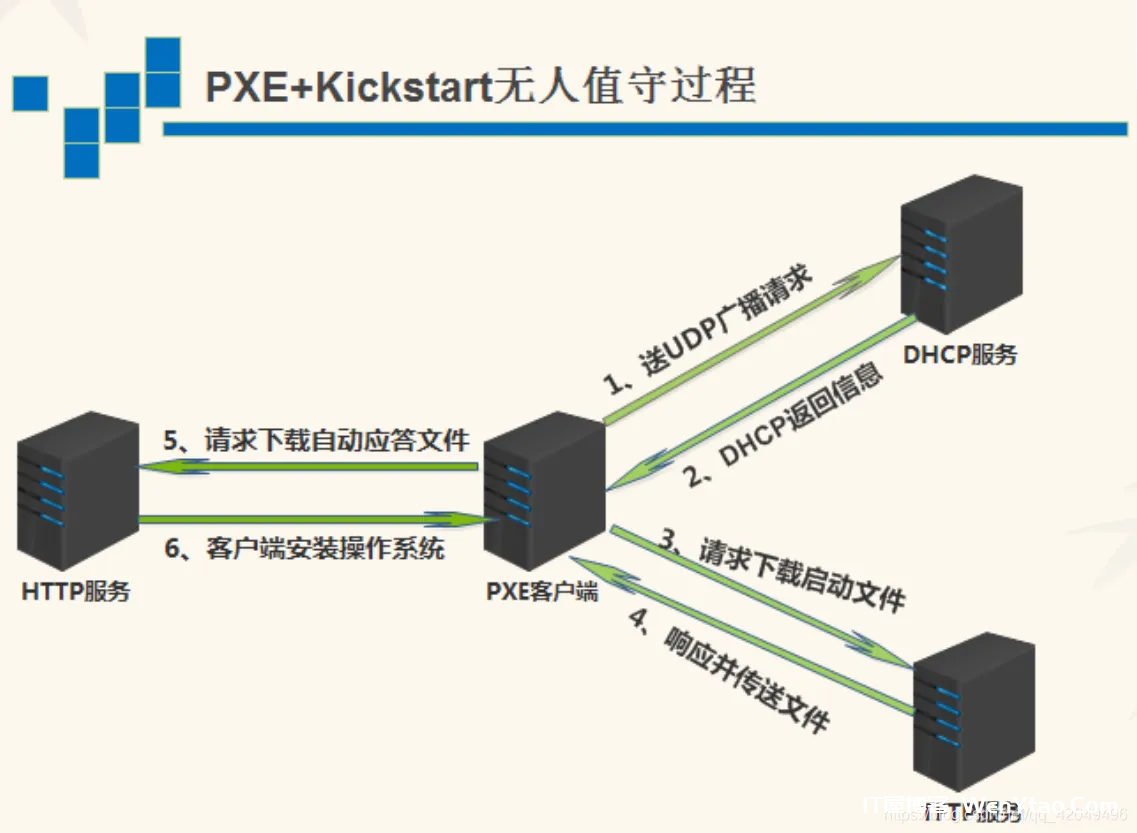

这是pxe服务器的工作流程 (我个人觉得他已经很详细了)
下面来做一下这个
我们pxe服务器的ip地址是192.168.1.12

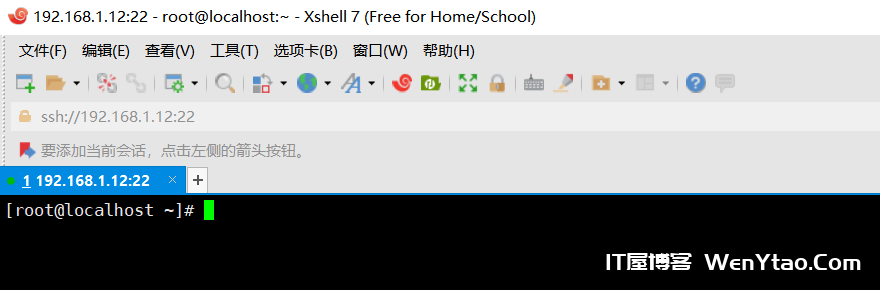

使用远程终端来连一下服务器
因为我们使用网络yum 源的方式来安装软件
所以,我们要看一下服务器的网络是否有问题
[root@localhost ~]# ping www.baidu.com PING www.a.shifen.com (180.101.49.11) 56(84) bytes of data. 64 bytes from 180.101.49.11 (180.101.49.11): icmp_seq=1 ttl=128 time=42.2 ms 64 bytes from 180.101.49.11 (180.101.49.11): icmp_seq=2 ttl=128 time=29.1 ms 64 bytes from 180.101.49.11 (180.101.49.11): icmp_seq=3 ttl=128 time=23.0 ms 64 bytes from 180.101.49.11 (180.101.49.11): icmp_seq=4 ttl=128 time=18.5 ms ^C --- www.a.shifen.com ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 4115ms rtt min/avg/max/mdev = 18.545/28.257/42.227/8.907 ms [root@localhost ~]#
这样网络就会没问题的
安装dhcp服务
[root@localhost ~]# yum installdhcp -y
安装Apache
[root@localhost ~]# yum install httpd -y
安装syslinux
[root@localhost ~]# yum installsyslinux -y
安装tftp服务器端程序
[root@localhost ~]# yum installtftp-server.x86_64 -y
看dhcp目录
[root@localhost ~]# cd /etc/dhcp/ [root@localhost dhcp]# ll 总用量 8 drwxr-xr-x. 2 root root 37 6月10 2021 dhclient.d drwxr-xr-x. 2 root root 28 4月20 12:08 dhclient-exit-hooks.d -rw-r--r--. 1 root root120 6月10 2021 dhcpd6.conf -rw-r--r--. 1 root root117 6月10 2021 dhcpd.conf drwxr-x---. 2 root dhcpd28 4月20 12:08 scripts
这是dhcp的主配置文件
[root@localhost dhcp]# cat dhcpd.conf # # DHCP Server Configuration file. # see /usr/share/doc/dhcp*/dhcpd.conf.example # see dhcpd.conf(5) man page #
一看什么都没有
拷贝一个现成的模板到我们dhcp主配置文件当中
[root@localhost dhcp]# cp /usr/share/doc/dhcp-4.2.5/dhcpd.conf.example ./dhcpd.conf cp:是否覆盖"./dhcpd.conf"? y [root@localhost dhcp]#
编辑dhcp主配置文件
[root@localhost dhcp]# vim dhcpd.conf

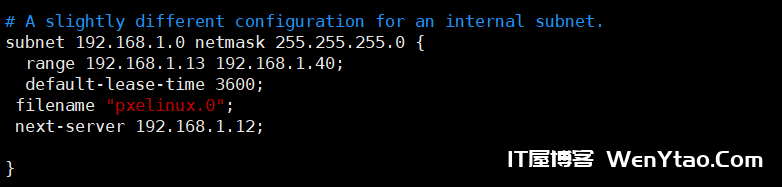

subnet 192.168.1.0 netmask 255.255.255.0 { range 192.168.1.13 192.168.1.40; default-lease-time 3600; filename "pxelinux.0"; next-server 192.168.1.12;
我们要这几个
截图
重启dhcp服务
[root@localhost dhcp]# systemctlrestartdhcpd
进入到TFTP指定目录
[root@localhost ~]# cd /etc/xinetd.d/ [root@localhost xinetd.d]# ls tftp [root@localhost xinetd.d]#
编辑这个文件
[root@localhost xinetd.d]# vim tftp

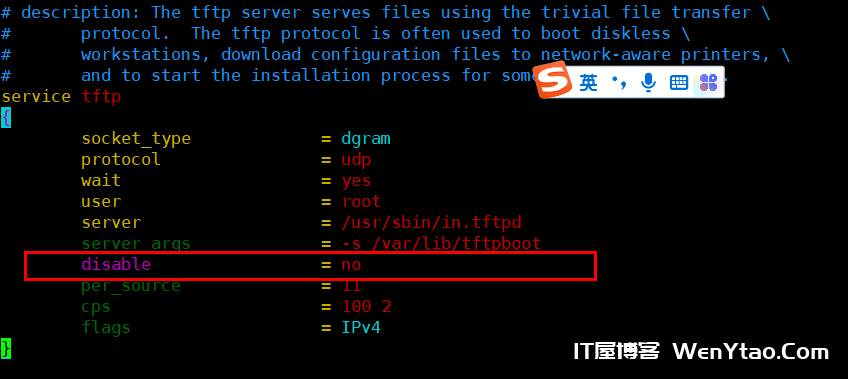

改一下这个配置 写成no就可以了
重启tftp服务
[root@localhost xinetd.d]# systemctlrestarttftp.socket
看一下状态
[root@localhost xinetd.d]# systemctlstatustftp.socket ● tftp.socket - Tftp Server Activation Socket Loaded: loaded (/usr/lib/systemd/system/tftp.socket; disabled; vendor preset: disabled) Active: active (listening) since 三 2022-04-20 13:27:17 CST; 45s ago Listen: [::]:69 (Datagram) 4月 20 13:27:17 localhost.localdomain systemd[1]: Listening on Tftp Server Activation Socket. 4月 20 13:27:17 localhost.localdomain systemd[1]: Starting Tftp Server Activation Socket.

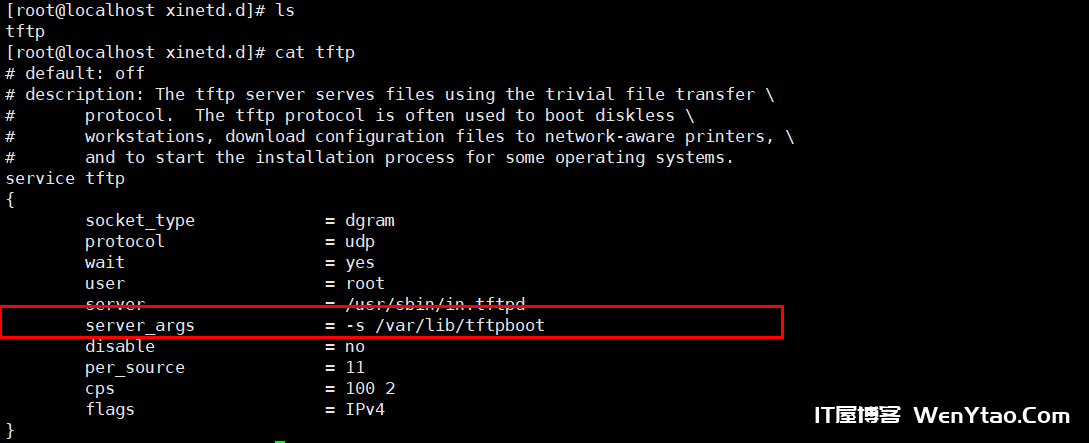

注意看这个目录
进入指定目录
[root@localhost xinetd.d]# cd /var/lib/tftpboot/ [root@localhost tftpboot]# ls [root@localhost tftpboot]#
[root@localhost tftpboot]# cp /usr/share/syslinux/pxelinux.0 ./
这是菜单文件
[root@localhost tftpboot]# cp /usr/share/syslinux/menu.c32 ./
新建一个挂载点
[root@localhost tftpboot]# mkdir /media/cdrom/
实现挂载
[root@localhost tftpboot]# mount /dev/cdrom/media/cdrom/ mount: /dev/sr0 写保护,将以只读方式挂载
把光盘下的引导文件拷贝到当前目录
下(安装)
[root@localhost tftpboot]# cp /media/cdrom/isolinux/vmlinuz ./ [root@localhost tftpboot]# cp /media/cdrom/isolinux/initrd.img ./ [root@localhost tftpboot]#

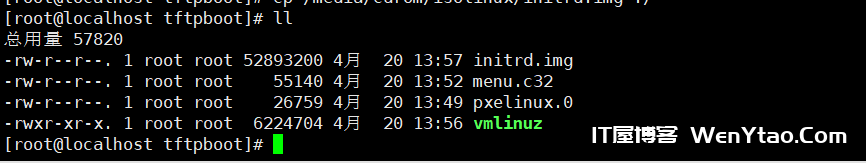

现在这个目录下就有了四个文件
新建这个目录(这个文件名是一定要这样写的)
[root@localhost tftpboot]# mkdir pxelinux.cfg
进入改目录
[root@localhost tftpboot]# cd pxelinux.cfg/
创建文件
[root@localhost pxelinux.cfg]# touch default
[root@localhost pxelinux.cfg]# ls default
编辑default这个文件
[root@localhost pxelinux.cfg]# vim default
把这个复制进去就可以了,地址改成你自己的就可以了

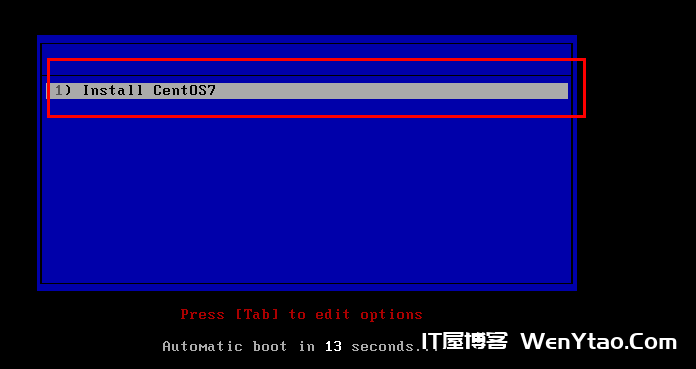

default menu.c32 timeout 300 prompt 0 label 1 menu label ^1) Install CentOS7 menu default kernel vmlinuz append initrd=initrd.img method=http: //192.168.1.12/CentOS7 ks=http://192.168.1.12/ks.cfg

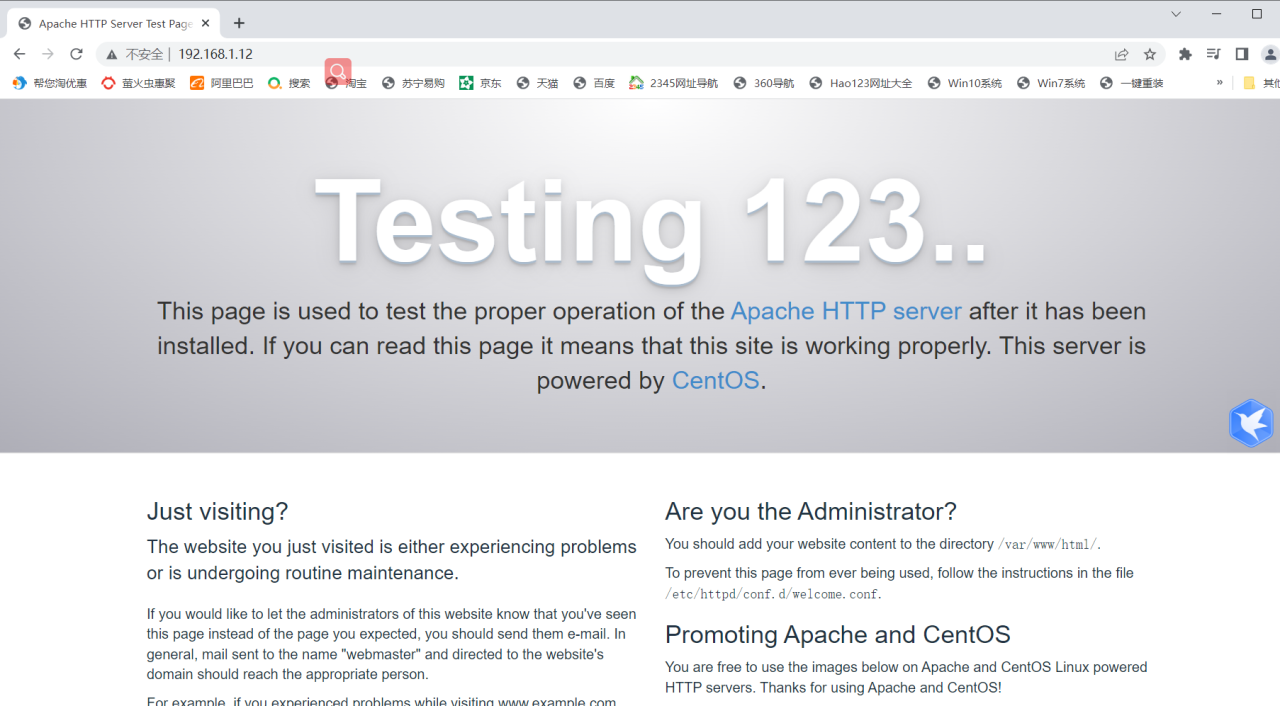

重启Apache
[root@localhost pxelinux.cfg]# systemctl restarthttpd
进入这个目录
[root@localhost pxelinux.cfg]# cd /var/www/html/
这个不用管,这只是随意写的一个测试脚本文件,与这个部署没有关系
[root@localhost html]# ls testphp.php

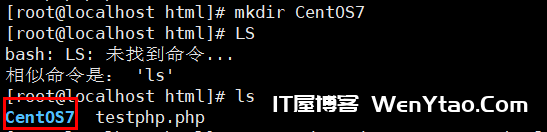

挂载
[root@localhost html]# mount /dev/cdrom/var/www/html/CentOS7/
这样就可以看见光盘的内容
[root@localhost html]# cd CentOS7/ [root@localhost CentOS7]# ls CentOS_BuildTagEULAimagesLiveOSrepodataRPM-GPG-KEY-CentOS-Testing-7 EFIGPL isolinuxPackagesRPM-GPG-KEY-CentOS-7TRANS.TBL [root@localhost CentOS7]#

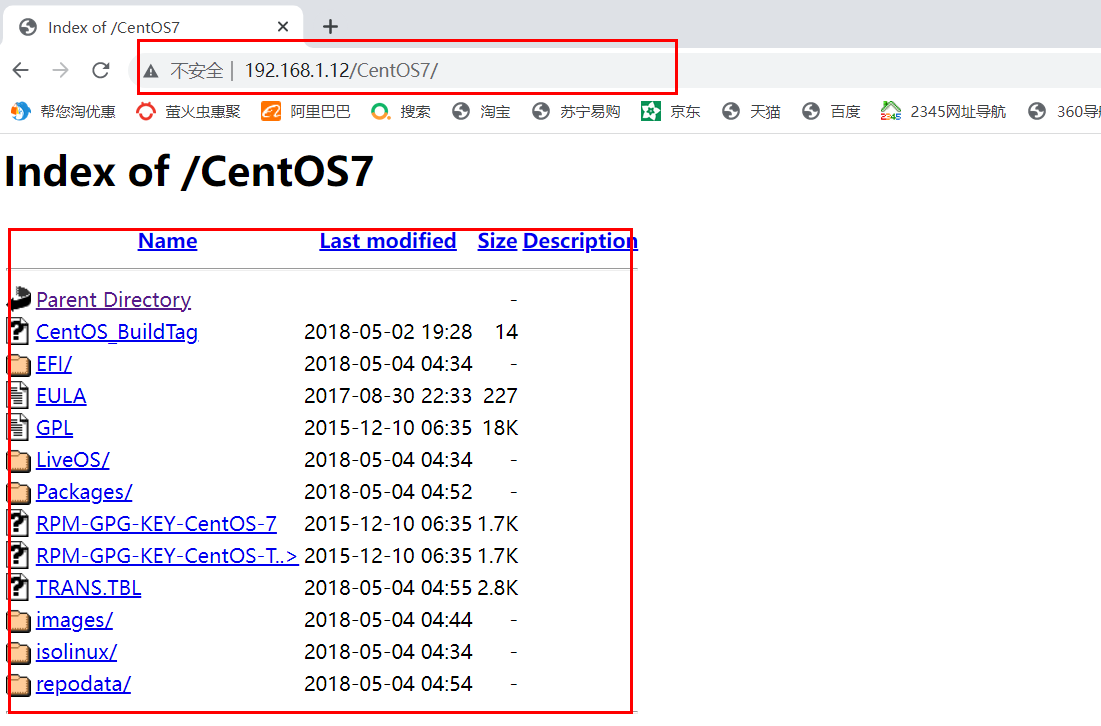

浏览器测试:(Apache服务器正常)
这个时候,在浏览器上可以访问到光盘的文件

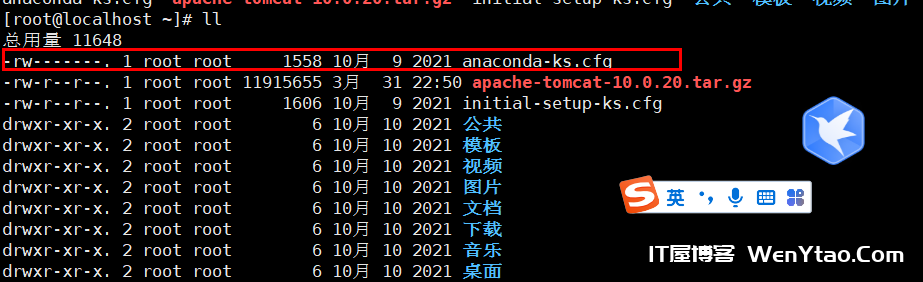

在root目录下
将这个文件拷贝到/var/www.html下
[root@localhost ~]# cp anaconda-ks.cfg /var/www/html/
将指定文件改个名
[root@localhost ~]# cd /var/www/html/ [root@localhost html]# ls anaconda-ks.cfgCentOS7testphp.php [root@localhost html]# mv anaconda-ks.cfgks.cfg

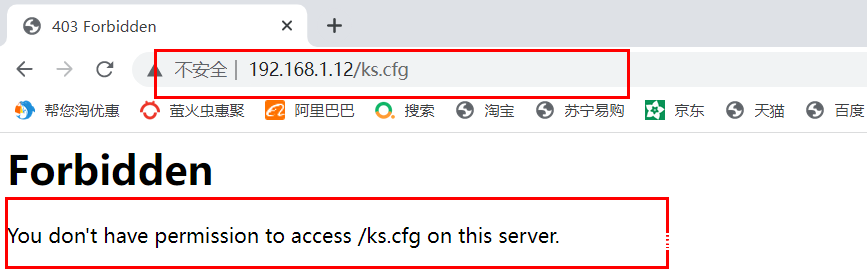

浏览器访问,会有一个403的错误,因为我们的权限不够
加一个读取权限

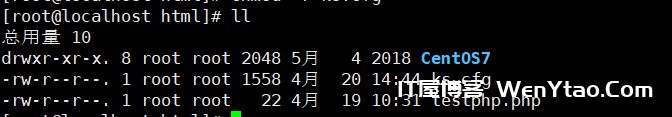

[root@localhost html]# chmod +r ks.cfg

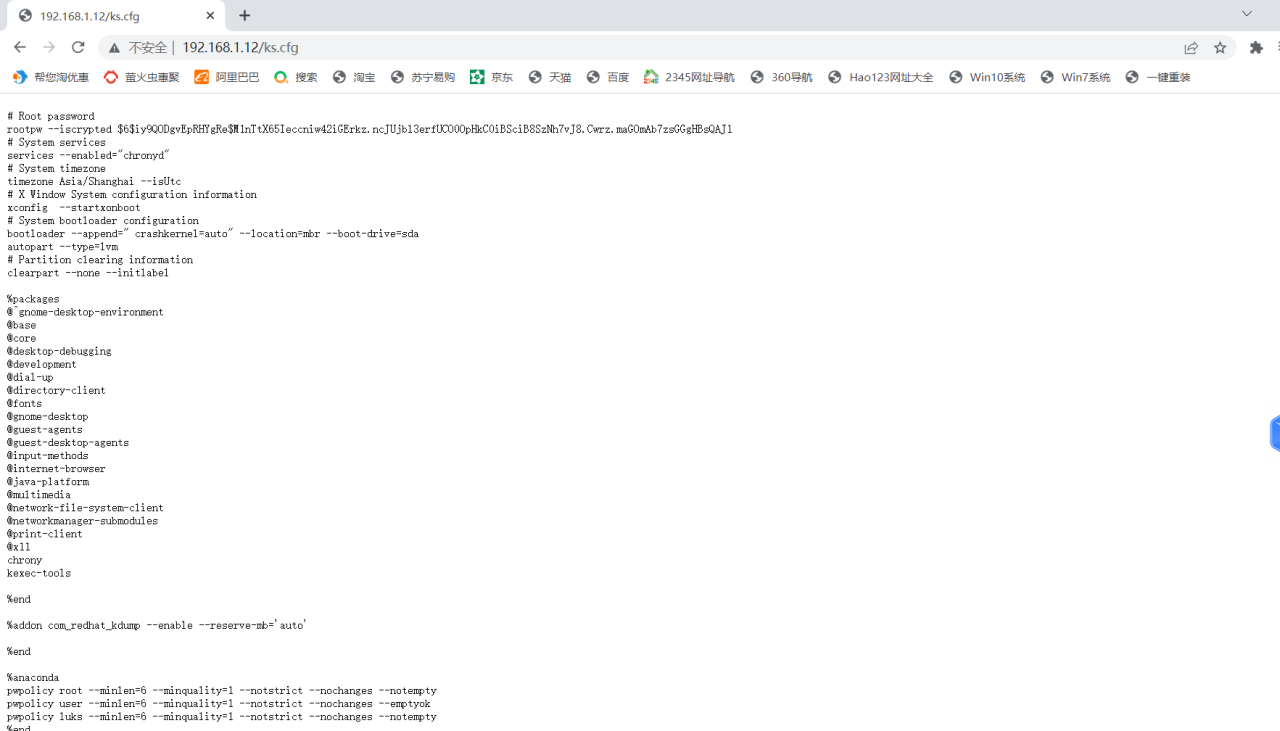

现在访问就是正常的(这是自动脚本的文件)
编辑这个文件
[root@localhost html]# vim ks.cfg
注销掉第五行
加上这一行
把这个图形化注释掉
使用文本安装
把第36行也注释掉
这样写
在最后加上重启的命令
重启服务
[root@localhost html]# systemctlrestarthttpd.service [root@localhost html]# systemctlrestarttftp.socket [root@localhost html]# systemctlrestartdhcpd

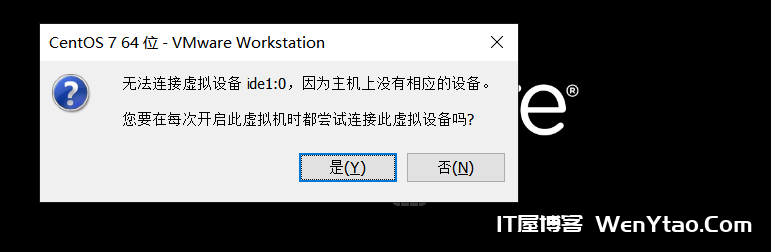

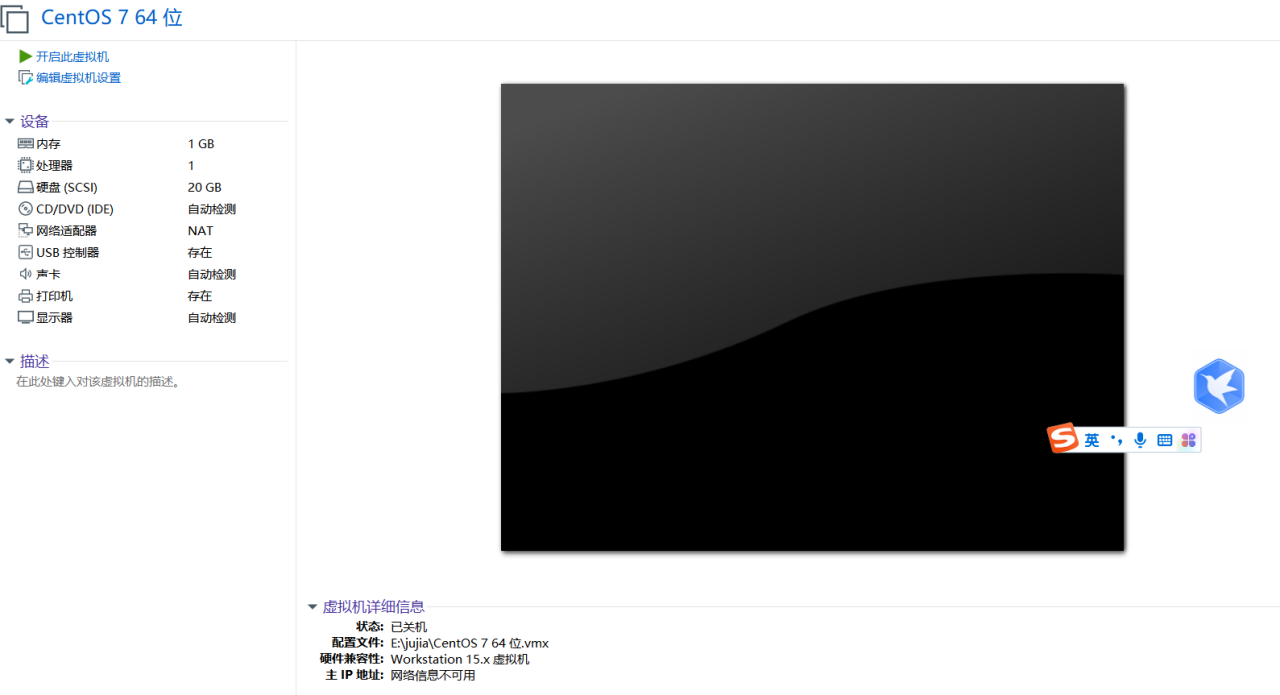

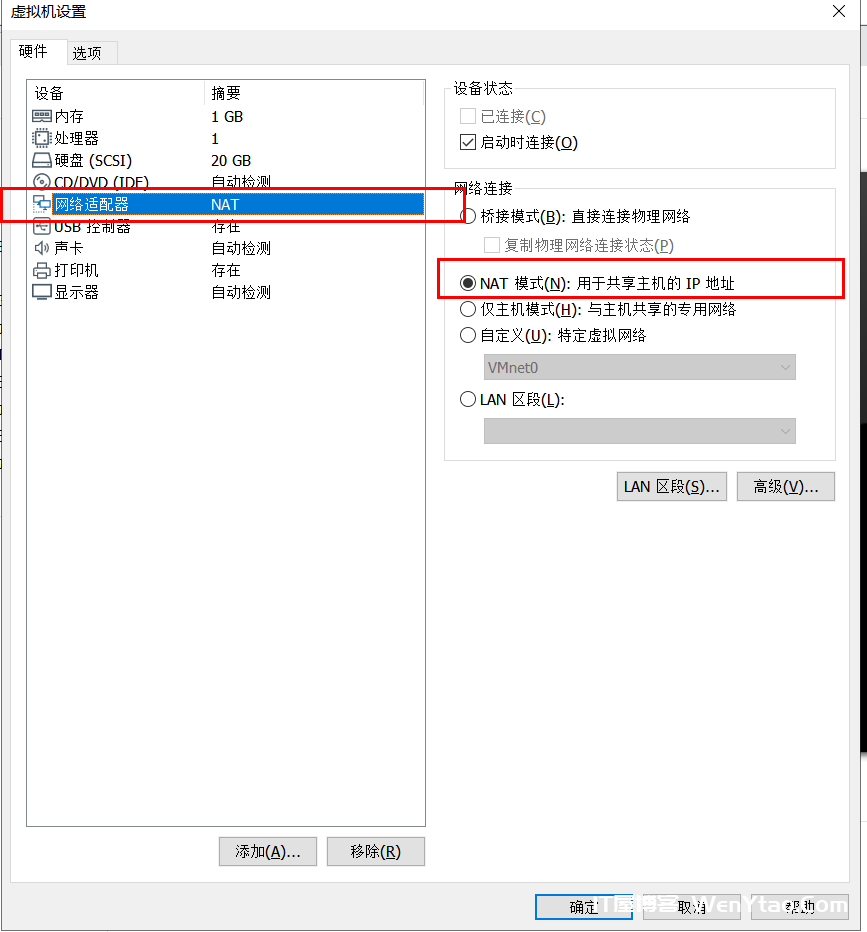

新建一个虚拟机
到这里,pxe就可以部署成功了,谢谢大家
